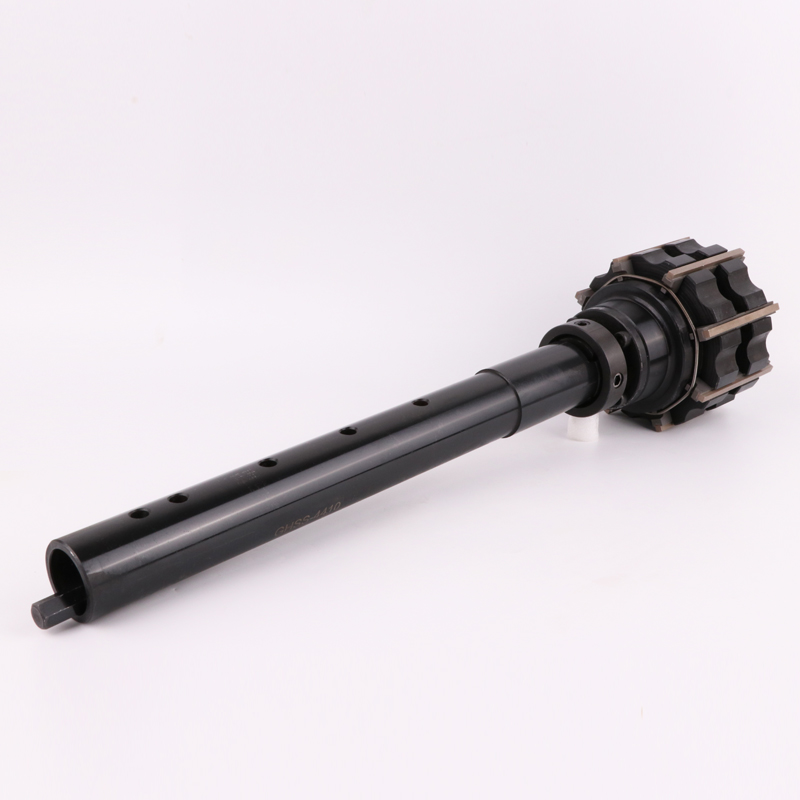

GHSS-4410 Hone Head for Sunnen Honing Machines
Diameter Range: 112,52 – 137,67 mm (4.43 – 5.42 in.)
| Diameter (mm) | Diameter (Inch) | Stone Holder 8 Holders/Set |
Abrasive Grade Suffix |
| 112,52 - 117,09 | 4.43 - 4.61 | G14C233-8-S8* | GH233 |
| 114,81 - 119,38 | 4.52 - 4.70 | G14C233-3-S8 | GH233 |
| 119,38 - 123,95 | 4.70 - 4.88 | G14C233-9-S8* | GH233 |
| 121,16 - 125,73 | 4.77 - 4.95 | G14C233-6-S8 | GH233 |
| 126,24 - 130,81 | 4.97 - 5.15 | G14C233-10-S8* | GH233 |
| 129,79 - 134,11 | 5.11 - 5.28 | G14C233-16-S8 | GH233 |
| 133,10 - 137,67 | 5.24 - 5.42 | G14C233-11-S8* | GH233 |
GHSS-3410/4410/5410/6410 are kits comprised of (1) hone head & (4) Stone Holder sets (marked "*").“H” suffix represents the hone head without stoneholder sets.
*Additional master holder or honing stone sizes available to optimize the working range.
GHSS-5410 ranges are 25.4mm larger than the GHSS-4410 ranges.
GHSS-6410 ranges are 50.8mm larger than the GHSS-4410 ranges.
Used on Honing Machines: Sunnen SV10, SV20, SV15, SV-30 CV-616, CK21 honing machines.
The GHSS Series Honing tools were developed for use in Sunnen or other brand vertical Honing Machines. The GHSS-4410 hone head consist four sets of eight spring loaded stoneholders, which utilize Diamond or CBN honingn stones.
